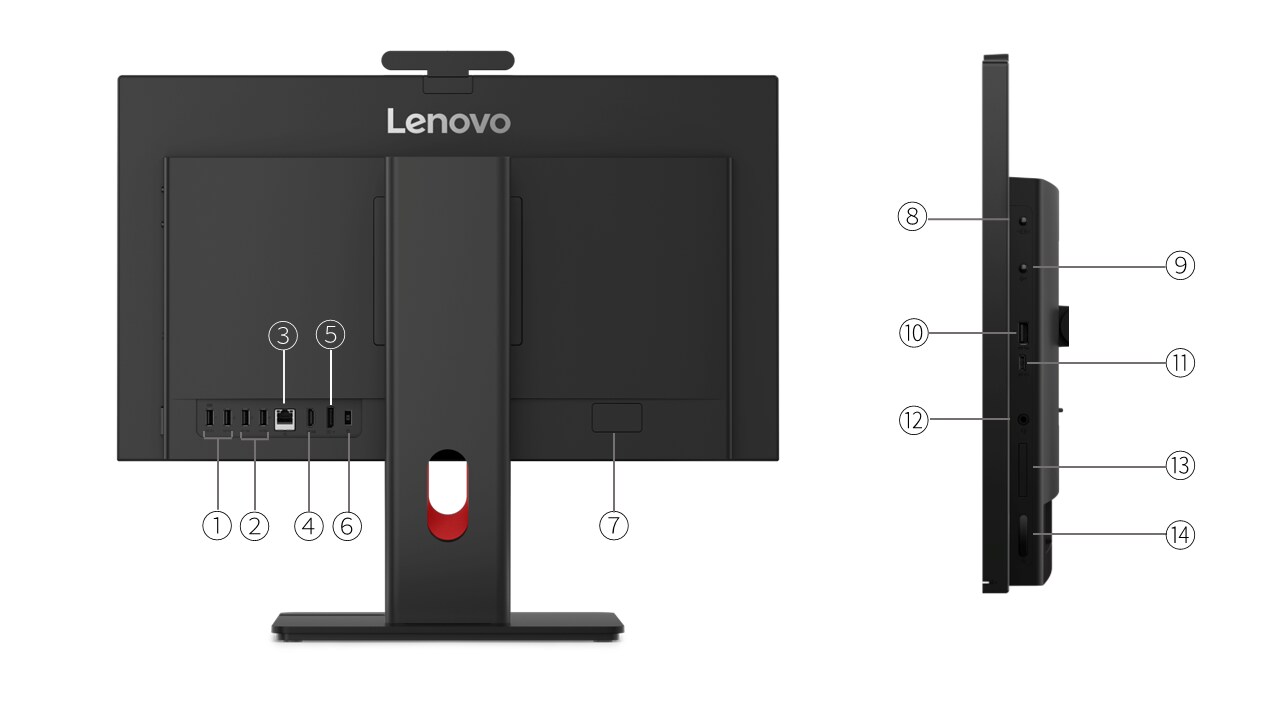

Overview

1.	2x USB-A (USB 5Gbps)	8.	PC / monitor mode switch
2.	2x USB-A (USB 10Gbps)	9.	Microphone mute button
3.	Ethernet (RJ-45)	10.	1x USB-A (USB 10Gbps)
4.	HDMI (HDMI in 1.4 / HDMI out 2.1 TMDS combo)	11.	USB-C (USB 10Gbps), with 15W charging
5.	DisplayPort 1.4	12.	Headphone / microphone combo jack (3.5mm)
6.	Power connector	13.	Card reader *
7.	Serial *	14.	Power button

Notes:

Items with * are only available on selected models

Performance

Processor

Processor Family

Intel® Core™ Ultra 5 / 7 Processor (Series 2)

Processor**

Processor Name	Cores	Threads	Base Frequency	Max Frequency	Cache	Processor Graphics	NPU
Core Ultra 5 225T	10 (6 P-core + 4 E-core)	10	P-core 2.5GHz / E-core 1.9GHz	P-core 4.9GHz / E-core 4.4GHz	22MB L2 Cache / 20MB Intel® Smart Cache	Intel® Graphics	Intel® AI Boost
Core Ultra 5 235T	14 (6 P-core + 8 E-core)	14	P-core 2.2GHz / E-core 1.6GHz	P-core 5.0GHz / E-core 4.4GHz	26MB L2 Cache / 24MB Intel® Smart Cache	Intel® Graphics	Intel® AI Boost
Core Ultra 5 245T	14 (6 P-core + 8 E-core)	14	P-core 2.2GHz / E-core 1.7GHz	P-core 5.1GHz / E-core 4.5GHz	26MB L2 Cache / 24MB Intel® Smart Cache	Intel® Graphics	Intel® AI Boost
Core Ultra 7 265T	20 (8 P-core + 12 E-core)	20	P-core 1.5GHz / E-core 1.2GHz	Max Turbo up to 5.3GHz / P-core 5.2GHz / E-core 4.6GHz	36MB L2 Cache / 30MB Intel® Smart Cache	Intel® Graphics	Intel® AI Boost

AI (Artificial Intelligence)

AI PC Category

AI PC, Lenovo® AI PC^[1]

NPU***

Integrated Intel® AI Boost, up to 13 TOPS
(Optional) Discrete NPU card, up to 30 TOPS

Notes:

[1] Lenovo® AI PC is only for the models with Lenovo® AI Now

Operating System

Operating System**

Windows® 11 Pro
Windows® 11 Home
Windows® 11 Home Single Language
No preload operating system

Graphics

Graphics	Type	Memory	Max Resolution	Connector	Key Features
Intel® Graphics	Integrated	Shared	4096x2160@60Hz(HDMI®), 5120x2880@60Hz (DP)	1x HDMI® 2.1 TMDS, 1x DP 1.4a	DirectX® 12

Monitor Support

Supports up to 3 independent displays via native display and 2 external monitors; supports external monitors via DisplayPort™ and HDMI®; work as standalone monitor via HDMI® (HDMI® in / out combo)

Chipset

Intel® Q870 chipset

Memory

Max Memory^[1]

Up to 64GB DDR5-5600

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Memory Type

DDR5-5600

Memory Protection

Non-ECC

Notes:

[1] The max memory is based on the test results with current Lenovo® memory offerings.

Storage

Storage Support^[1]

Up to two drives, 2x M.2 SSD • M.2 SSD up to 1TB each^[2]

Storage Type***

Disk Type	Interface	Security
M.2 2280 SSD	PCIe® NVMe®, PCIe® 4.0 x4	Opal 2.0
M.2 2280 SSD	PCIe® NVMe®, PCIe® 4.0 x4 Performance	Opal 2.0

RAID

RAID 0/1 support for SSDs

Notes:

[1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.

[2] Discrete NPU and 2nd SSD are mutually exclusive.

Removable Storage

Optical**

DVD-ROM, slim (9.0mm), via USB external ODD box
DVD burner (DVD±RW), slim (9.0mm), via USB external ODD box
None

Card Reader

3-in-1 card reader (SD, SDHC, SDXC)
No card reader

Multi-Media

Audio Chip

High Definition (HD) Audio, Realtek® ALC233NL-VB2-CG codec

Speakers

Stereo speakers, 2W x2, Dolby Atmos®

Microphone

Dual-microphone array
No microphone

Camera**

5.0-megapixel, IR + RGB hybrid, with ThinkShutter (physical switch on/off), ±20° tilt and 180° swivel view angle adjustable, Windows® Hello support
5.0-megapixel, with ThinkShutter (physical switch on/off)
5.0-megapixel, with ThinkShutter (physical switch on/off), ±20° tilt and 180° swivel view angle adjustable
No camera

Power Supply

Power	Type	Efficiency	Key Features
90W	Adapter	89%	Autosensing

Design

Display

Display**^[1]

Size	Resolution	Touch	Type	Brightness	Surface	Aspect Ratio	Contrast Ratio	Color Gamut	Refresh Rate	Viewing Angle (L/R/U/D)	Key Features
23.8"	FHD (1920x1080)	None	IPS	250nits	Anti-glare (25% Haze)	16:9	1500:1	99% sRGB	120Hz	89° / 89° / 89° / 89°	14ms response Time, 4-side like Borderless, TÜV Rheinland® Low Blue Light (Hardware Solution), TÜV Rheinland® Flicker Free, Eyesafe® Certified 2.0
23.8"	FHD (1920x1080)	Multi-touch	IPS	250nits	Anti-glare (25% Haze)	16:9	1500:1	99% sRGB	120Hz	89° / 89° / 89° / 89°	14ms response Time, 4-side like Borderless, TÜV Rheinland® Low Blue Light (Hardware Solution), TÜV Rheinland® Flicker Free, Eyesafe® Certified 2.0

Touchscreen

OGM (One Glass Metal mesh) multi-touch, supports 10-point touch
Non-touch

Notes:

[1] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.

Input Device

Keyboard**

Lenovo® Calliope Keyboard (USB connector), black
Lenovo® Traditional Keyboard (USB connector), black
Wireless EOS Keyboard, black
No keyboard

Mouse**

Wireless EOS Mouse, black
Lenovo® Calliope Mouse (USB connector), black
No mouse

Mechanical

Buttons

Microphone mute button
Monitor / PC mode switch button
Power button

Form Factor

AIO (23.8 inches)

Dimensions (WxDxH)^[1]

Models	Dimensions
Models (with UltraFlex IV stand, with No-Tilt camera)	Lowest in flat mode: 539.6 x 333.45 x 222 mm (21.24 x 13.13 x 8.74 inches) Highest in vertical mode: 539.6 x 264.91 x 450.93 mm (21.24 x 10.43 x 17.75 inches)
Models (with UltraFlex V stand, with camera)	Lowest in flat mode: 539.6 x 333.45 x 224.10 mm (21.24 x 13.13 x 8.82 inches) Highest in vertical mode: 539.6 x 264.91 x 455.94 mm (21.24 x 10.43 x 17.95 inches)
Models (with UltraFlex V stand, without camera)	Lowest in flat mode: 539.6 x 333.45 x 214.33 mm (21.24 x 13.13 x 8.44 inches) Highest in vertical mode: 539.6 x 264.91 x 430.43 mm (21.24 x 10.43 x 16.95 inches)
Models (with full function monitor stand, with No-Tilt camera)	539.6 x 222.21 x 388.01-538.01 mm (21.24 x 8.75 x 15.28-21.18 inches)
Models (with full function monitor stand, with camera)	539.6 x 222.21 x 393.01-543.01 mm (21.24 x 8.75 x 15.47-21.38 inches)
Models (with full function monitor stand, without camera)	539.6 x 222.21 x 367.51-517.51 mm (21.24 x 8.75 x 14.47-20.37 inches)
Models (with tilt only stand, with No-Tilt camera)	539.6 x 213.14 x 437 mm (21.24 x 8.39 x 17.2 inches)
Models (with tilt only stand, with camera)	539.6 x 213.14 x 442 mm (21.24 x 8.39 x 17.4 inches)
Models (with tilt only stand, without camera)	539.6 x 213.14 x 416.5 mm (21.24 x 8.39 x 16.4 inches)
Models (without stand, with No-Tilt camera)	539.6 x 49.55 x 335.2 mm (21.24 x 1.95 x 13.2 inches)
Models (without stand, with camera)	539.6 x 49.55 x 340.2 mm (21.24 x 1.95 x 13.39 inches)
Models (without stand, without camera)	539.6 x 49.55 x 314.7 mm (21.24 x 1.95 x 12.39 inches)

Packaging Dimensions (WxDxH)

EPE: 690 x 238 x 545 mm (27.17 x 9.37 x 21.46 inches) Paper pulp: 713 x 232 x 575 mm (28.07 x 9.13 x 22.64 inches)

Weight^[2]

Models	Weight
Models (with UltraFlex V stand)	7.16 kg (15.79 lbs, maximum configuration)
Models (with full function monitor stand)	8.08 kg (17.81 lbs, maximum configuration)
Models (with tilt only stand)	7.12 kg (15.7 lbs, maximum configuration)
Models (without stand)	5.12 kg (11.29 lbs, maximum configuration)

Packaging Weight

EPE: 1.904Kg (4.20 lbs), packaging only Paper pulp: 2.698 Kg (5.95 lbs), packaging only

Case Color

Black

Bays

No bays

Expansion Slots

Three M.2 slots (one for WLAN, two for SSD / discrete NPU)

EOU

Toolless cover, stand, motherboard shielding, and memory assembly / removal

Stand**

UltraFlex V stand, supports -5° to +70° tilt, up to 70°±2° lift (up to 169.86mm lift in flat mode / up to 102.74mm lift in vertical mode)
Full function monitor stand, supports -5° to +22° tilt, left & right 45° swivel, 90° pivot, up to 150mm lift
No stand
Tilt only stand, supports -5° to +25° tilt

Mounting

Supports VESA mount 100mm

Others

Supports Smart Power On

Notes:

[1] The system dimensions may vary depending on configurations.

[2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.

Connectivity

Network

Onboard Ethernet

Gigabit Ethernet, Intel® Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN

Optional Ethernet

No optional Ethernet

WLAN + Bluetooth®**

Intel® Wi-Fi® 6 AX203, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 Card
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support, M.2 Card
Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4
No WLAN and Bluetooth®

Ports^[1]

Rear Ports

2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® (HDMI® in 1.4 / HDMI® out 2.1 TMDS combo port)
1x DisplayPort™ 1.4a (HBR2)
1x Ethernet (RJ-45)

Optional Rear Ports

1x serial

Right Ports

1x headphone / microphone combo jack (3.5mm)
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), support data transfer and 5V@3A charging

Optional Right Ports

1x card reader

Notes:

[1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4® 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s.

Security & Privacy

Security

Security Chip

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Physical Locks

Kensington® Security Slot™, 3 x 7 mm

Chassis Intrusion Switch

Chassis intrusion switch
No chassis intrusion switch

Fingerprint Reader

No fingerprint reader

Other Security

ThinkShutter camera cover (camera models)

BIOS Security

Administrator password
Hard disk password
Power-on password
Boot sequence control
Boot without keyboard and mouse
Individual USB port disablement
Self-healing BIOS
Smart USB protection (allows keyboard / mouse only, blocks all storage devices)

Manageability

System Management

System Management^[1]

Intel® vPro® Enterprise
Non-vPro®

Notes:

[1] Intel® vPro® offers a superset of DASH’s defined capabilities.

Service

Warranty^[1]

Base Warranty**

1-year courier or carry-in service
1-year limited onsite service
3-year limited onsite service
No base warranty

Notes:

[1] The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://support.lenovo.com/warrantylookup/warrantypolicy.

Accessories

Bundled Accessories

Bundled Accessories**

DP to DVI dongle
DP to HDMI® dongle
DP to VGA dongle
HDMI® to DVI dongle
HDMI® to VGA dongle
None

Operating Requirements

Operating Environment

Temperature

Operating: 5°C (41°F) to 35°C (95°F)
Storage: -20°C (-4°F) to 60°C (140°F)

Relative Humidity

Operating: 20% to 80%

Altitude

Operating: 0 m (0 ft) to 3048 m (10,000 ft)
Storage: 0 m (0 ft) to 12192 m (40,000 ft)

Environmental

Sustainability

Material^[1]

85% PCC ABS with brand closed-loop material in plastic in chassis 95% PCC ABS with brand closed-loop material in wired keyboard/mouse paper pulp cushion or 90% PIC EPE cushion 30% OBP in bag FSC carton in packaging

Notes:

[1] PCC: Post Consumer Content, recycled materials from customers. PIC: Post Industry Content, recycled materials from internal factories. EPE: Expanded Polyethylene. OBP: Ocean Bound Plastic, reducing plastic spill into the sea. FSC: Forest Stewardship Council.

Certifications

Green Certifications^[1]

Green Certifications

(Optional) ENERGY STAR® 9.0
(Optional) EPEAT™ Gold Registered
ErP Lot 3
GREENGUARD®
RoHS compliant
(Optional) TCO Certified 10.0
(Optional) TCO edge

Notes:

[1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.

Other Certifications

SGS Performance Tested certification : Extreme Comfortable Noise
IP55-compliant (front face, for touch models)
IP54-compliant (front face, for non-touch models)
Healthcare compliance IEC 60601-1 / IEC 60601-1-2
Eyesafe® Certified 2.0
TÜV Rheinland® Flicker Free
TÜV Rheinland® Low Blue Light (Hardware Solution)
Anti-dust

Mil-Spec Test

MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)

Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
The specifications on this page may not be available in all regions, and may be changed or updated without notice.
